2016年9月12日 星期一

墨水雜記其之六:Yellow/Orange Inks

終於介紹到最後一個顏色系列了~黃色是我的主打色!也就是說我不管身心都和黃色很搭!

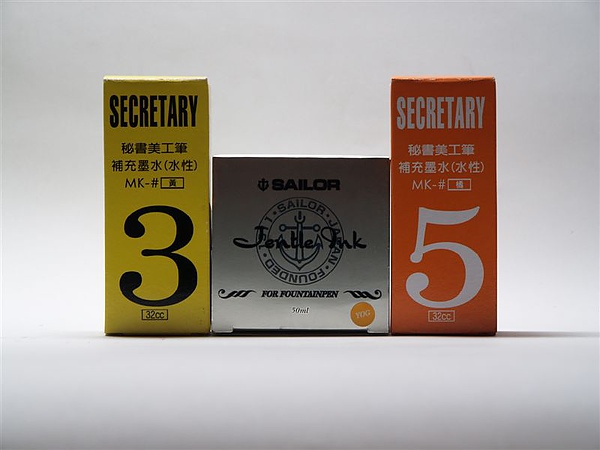

最後一張團體照!
原稿後製前,
由上至下分別是:
1. Sailor Jentle Ink Yellow-Orange
2. SKB MK#3 黃
3. SKB MK#5 橘
後製過,
Gamma 0.9
Brightness -5
Contrast +5
Color Phase -10
Saturation -5
1. Sailor Jentle Ink Yellow-Orange
這顏色不純潔~看起來就像黃黃的柳丁色,就是柳丁看起來很H的意思。
2. SKB MK#3 黃
實際顏色是非常亮而飽和的黃色,可惜掃描後不容易表現MK#3的亮黃色。
3. SKB MK#5 橘
沒見過橘子是長這顏色的,泰式奶茶的顏色還比較像…
End~~~收工~~~
Reference Links

Black Inks

Blue Inks

Red/Brown Inks

Green Inks

Violet Inks

Yellow/Orange Inks

KREX City Rider 淑女登山車 自組瞎搞版 DIY Lady's MTB on Raod

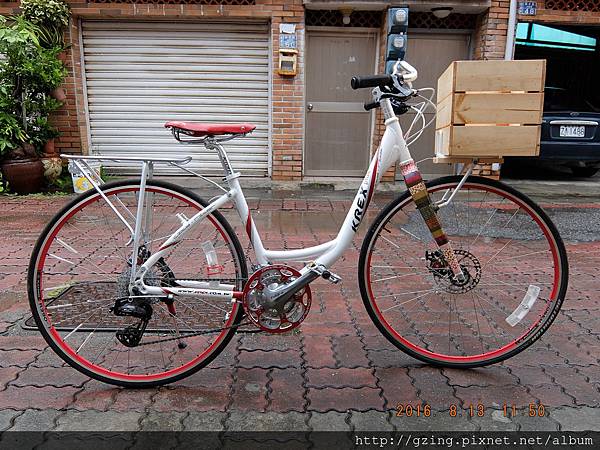

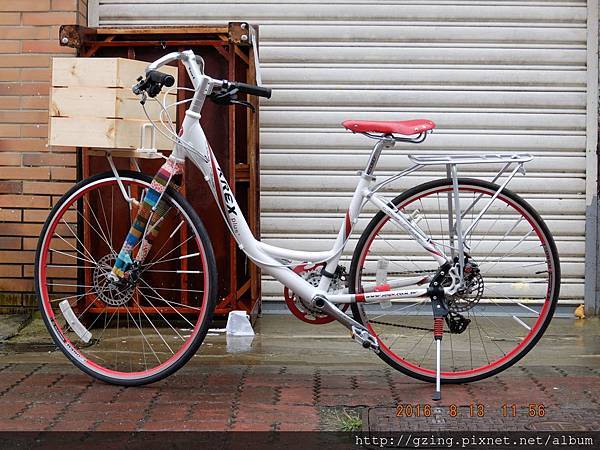

老婆懷孕前就預計要組裝的車,不過懷孕生產育兒這些事優先,故花了兩年的時間,才慢慢成形,下面照片是最接近目前版本的模樣,不過老婆覺得木箱太重,轉彎不靈活,所以又做了些調整。
給老婆騎美美的車,為了風格趣味和獨特搭配而決定組裝的車,是把自己對單車的了解與認識做個變化的車,目標是以後有機會一定要來自己焊接一台獨到的單車。
因為不是很有時間寫BLOG,只能簡短介紹,就請各位看官自行體會囉 m(_ _)m。
Have prepared all the parts before my wife pregnancy, but you know~ kids breeding take precedence ,so it slowly formed after two years. The following photos are the closest to the appearance of the current version, but my wife felt wooden box is too heavy, no good for turning, so we made some adjustments.
This bike assenbled for my wife riding style and fun and unique, so it's a test of my bicycle experience. After this, my goal is to have a bike designed and welded by myself.
Because it is not quite time to write BLOG, so only a brief introduction provided, please feel free.

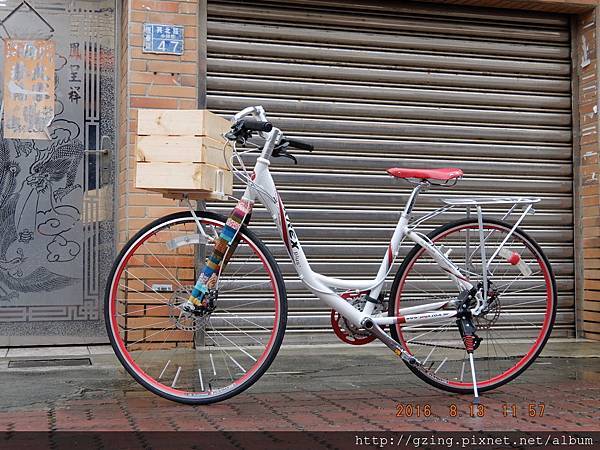

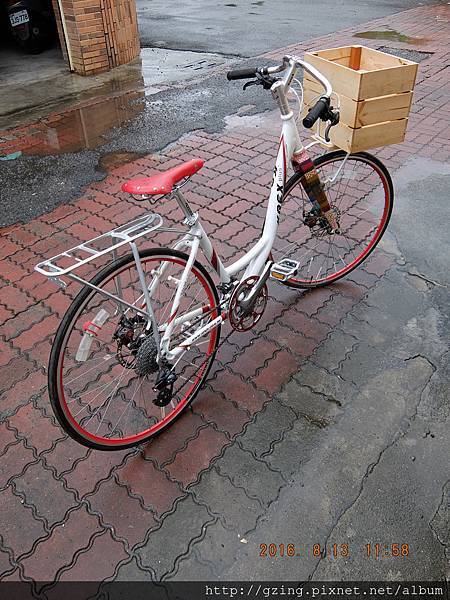

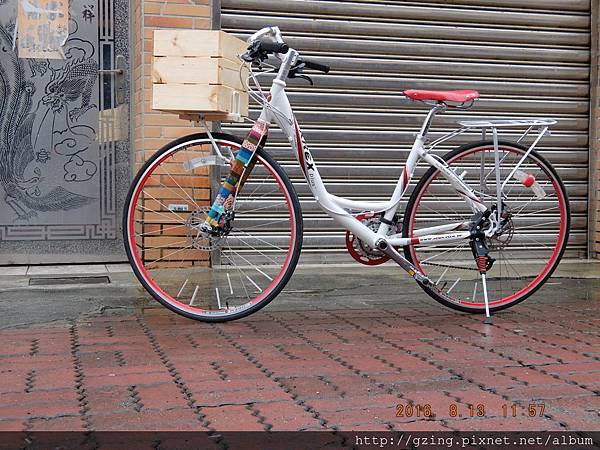

換個角度再多拍幾張
other views

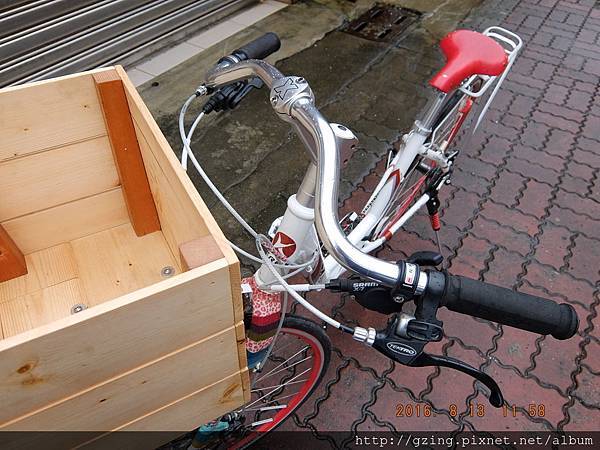

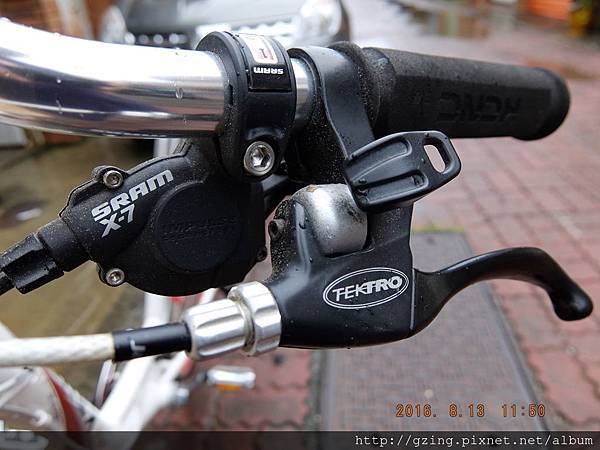

SRAM X-7 3*9 (shifters)指撥變把、Tektro (Break Level w/Ring, short travel for C-Brake and wired-disc-brake)鈴鐺煞把(短行程版本,適合C夾與機械碟煞)、KCNC(foaming grip)泡棉握把

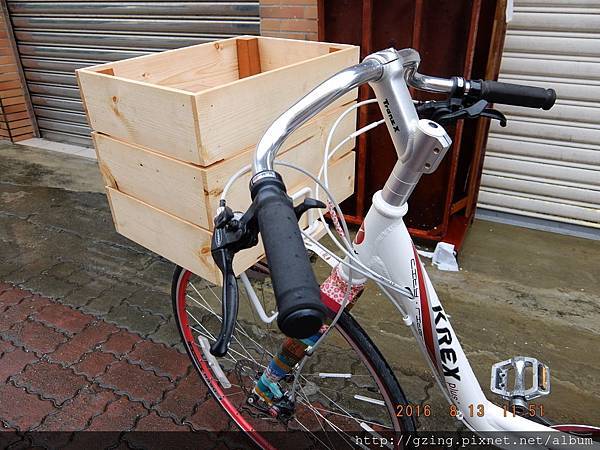

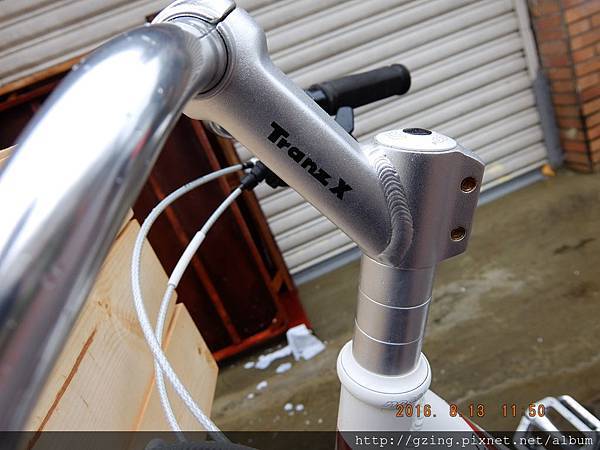

高角度TRANZX龍頭,無裁切的MOZZO前叉墊高高,選錯色的neco外露式頭腕組,應該選銀色的比較搭,找機會換掉!
hi-raised TranzX stem. non-cutted MOZZO fork. (wrong color) neco headset, ready to change as a silver headset.
反裝的廉價淑女車握把,如果用在平把公路車上,搭配一般龍頭高度會創造出獨特的氣勢,用在淑女車則是帶點中性的紳士氣氛。
Reverse installed wing handle bar. If using on a road bike w/6 degree stem, it would looks very cool, and looks gorgeous on this city bike.

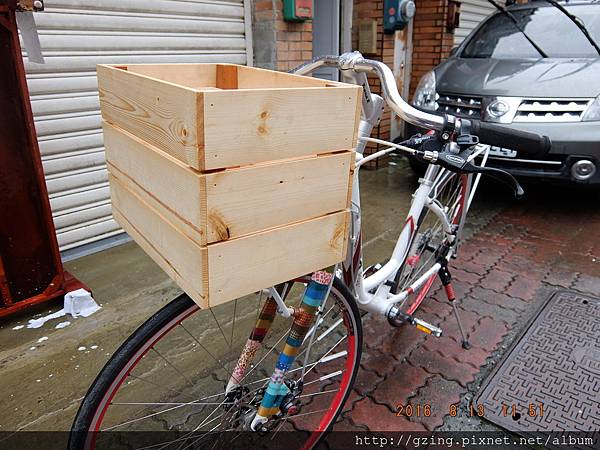

自己製作的菜籃木箱,有塗抹蜂蠟。
DIY wooden bike box, wax treated

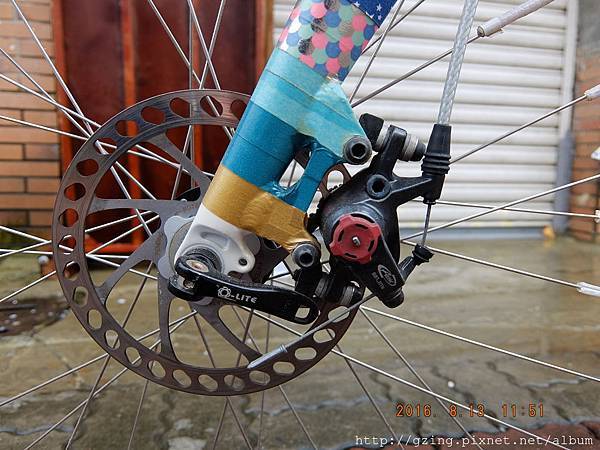

AVID BB7 (Road Bike ver.)公路車短行程版160mm (disc)碟盤

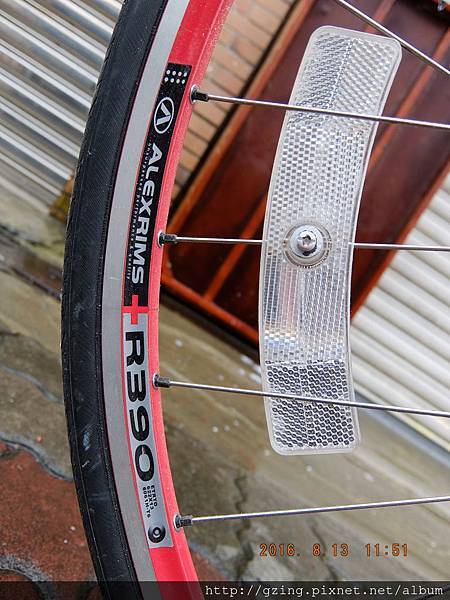

ALEXRIMS R390 (700c Rims), and refletors from a old KHS communication bike.
紅色公路車框,搭配老KHS學生車上拆下的反光片

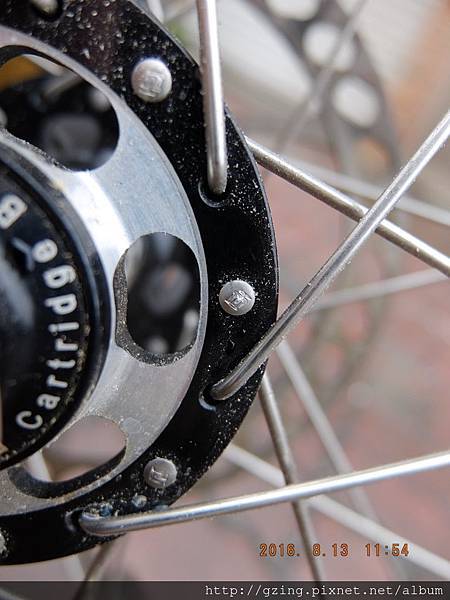

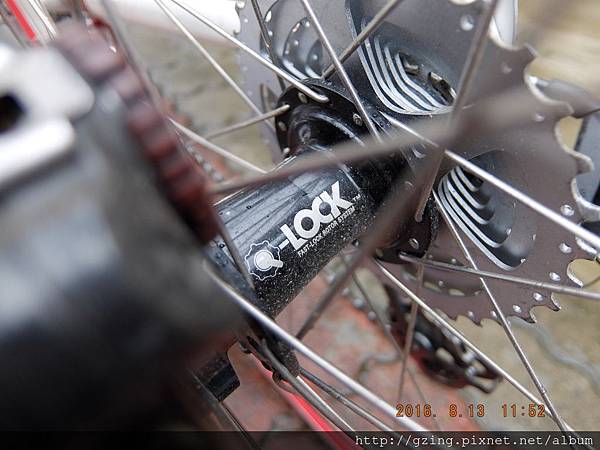

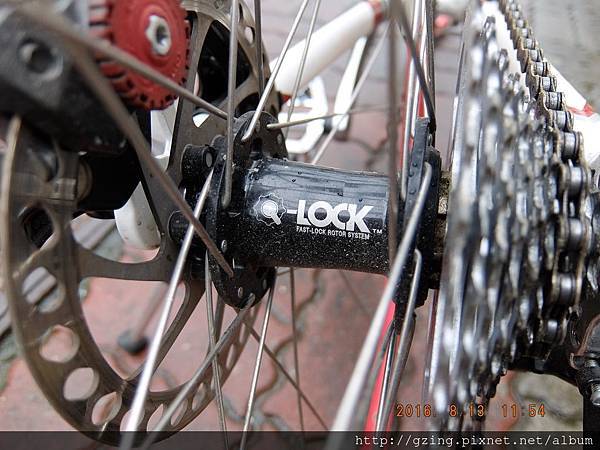

使用昆騰Q-LOCK登山車花穀,手編輪鋼絲採用DT SWISS單抽14號,三交叉編法,又Q又硬
Hand-made wheels w/Q-lock MTB hubs, DT SWISS DT Champion Straight pull #14, 3-cross webbed
SRAM R970 (flywheel)飛輪,YBN Ti-coated 9s chains 鍍鈦9速鍊條
DT SWISS 14號單抽
DT SWISS DT Champion Straight pull #14

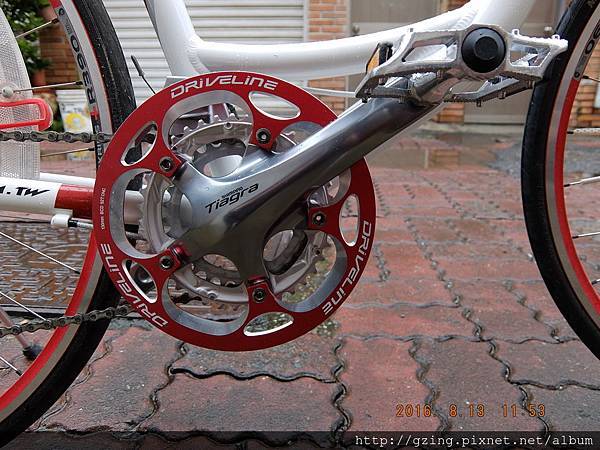

VP便宜的踏板,但是氣氛與顏色和車子有搭,DRIVELINE紅色護腿盤,Shimano Tiagra三盤拆掉最大的50T,並且延伸護腿盤至最外側以方便中變調整
VP Peddle is very cheap, but seems to fit the style. Driveline chain guard. Shimano Tiagra 3 chain wheel (50T removed, and extend the chain guard to outer to avoid front derailleur interfered.

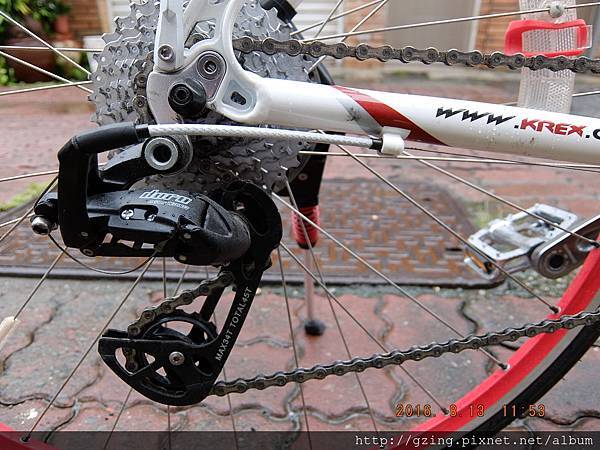

正好有備品不想另外花錢裝上去的SR SUNTOR DURO後變,找機會換成SWIFT長腿銀色比較搭
SR SUNTOR DURO is the spare part of another bike, just installed for saving money, Nmm...wait another silver part to replace.

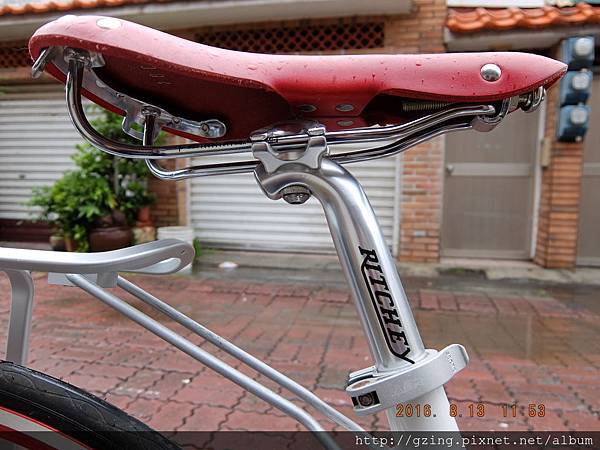

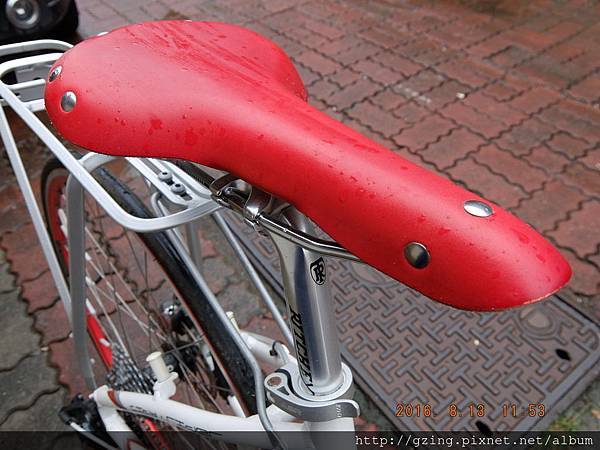

顏色非常美麗的台灣製Gyes紅色真皮坐墊,搭配RICHEY座管、SPECIALIZED座管束,一體感良好。
Gyes genuine leather saddle is made in Taiwan, well balanced look with Richey seat post, Specialized seat clamps

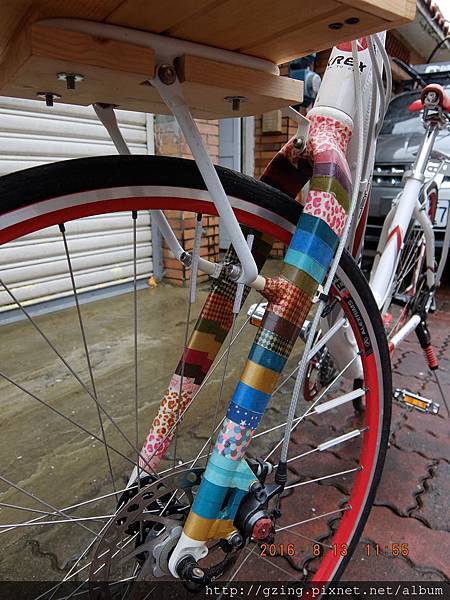

MOZO公路車三用版硬叉,自己惡搞的鄉村拼布風格花樣頗受男性車友搖頭嘆息與女性車友的尖叫說好可愛~~~
MOZO road bike fork could fit 3 kinds of brake. This country style painting hit the lady bikers heart, but other gentlemen don't think so.

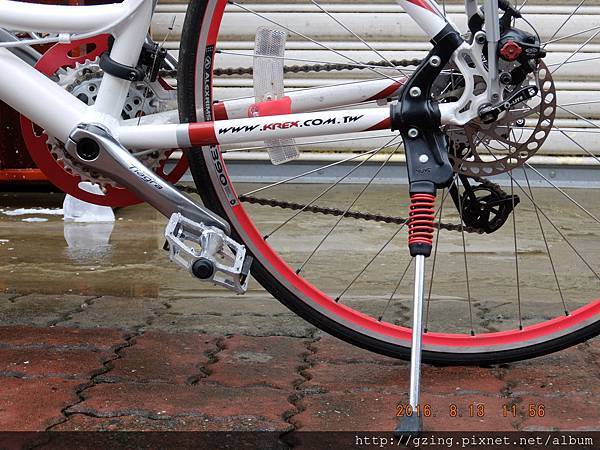

駐車架不貴但是紅色的彈簧紅的很漂亮,如果有亮銀色的就更合襯了
Common bike stand with a vivid red spring, very cute

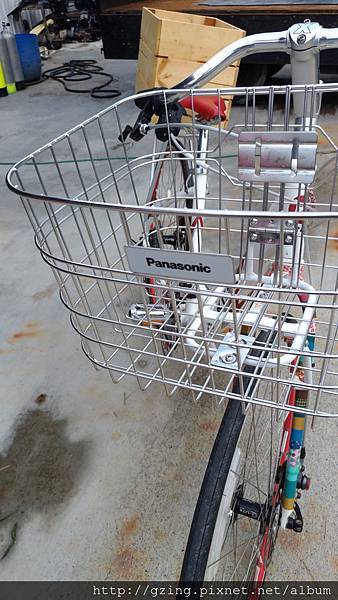

最終菜籃還是被強烈要求換成輕量的,所以找了Panasonic不鏽鋼淑女菜籃
finally, my wife Strongly demanded to have a light weighted head, so I replaced with Panasonic stainless basket.

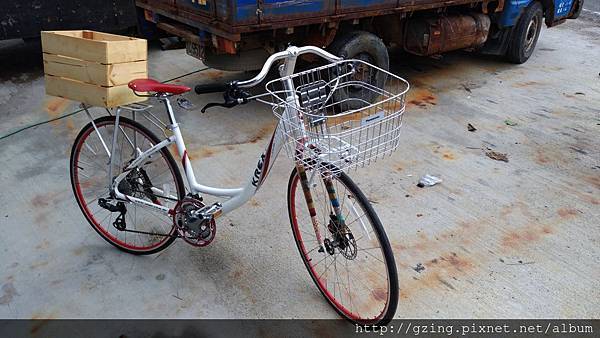

不甘心的木箱默默移到辛苦找到的銀色鋁合金後架,似乎也挺不錯的
Reconciled box moved to rear, seems not bad.
就先這樣吧
That's all.
